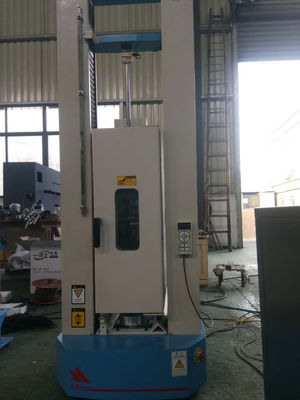

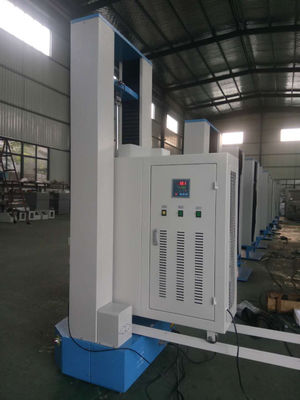

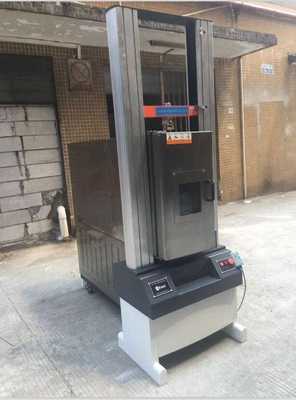

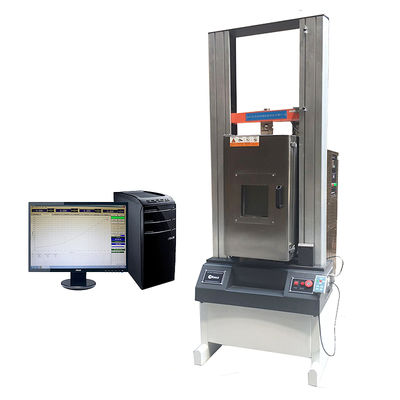

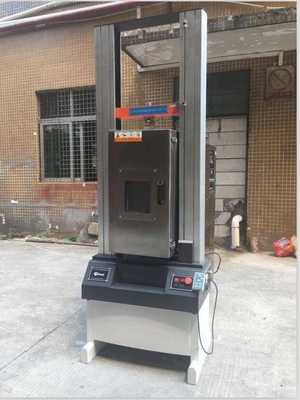

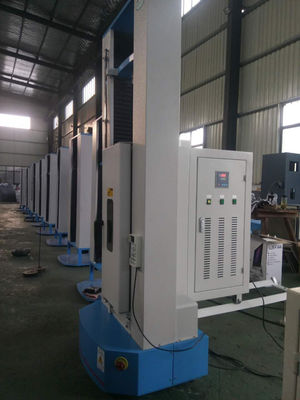

High Temperature Universal Tensile Strength Testing Machine
Product Overview
The High Temperature Universal Tensile Strength Testing Machine combines electronic technology with mechanical transmission for precise material testing. It features accurate load speed, force measurement range, and high sensitivity for load and displacement measurement. Capable of constant-velocity loading and displacement testing, this machine is ideal for quality control in production lines, suitable for testing both metallic and non-metallic materials with loads under 1 ton.
Key Functions
This testing machine is designed for flexible materials requiring large deformation measurements, including rubber, plastics, and leather. It performs tensile, tear, adhesive strength, and peel tests, equipped with a specialized extensometer for accurate large deformation measurements.
Technical Features
- Photoelectric encoder for precise displacement measurement
- Embedded microcontroller with multifunctional software for measurement, control, calculation, and data storage
- Automatic calculation of stress, elongation rate, tensile strength, and elastic modulus
- Computer display of dynamic testing curves with post-test data analysis capabilities
- Graphical processing module for curve amplification and report generation
Industry Applications
Widely used across multiple industries including quality control, rubber & plastics, metallurgy, machinery manufacturing, electronics, automotive, textiles, packaging materials, medical equipment, research laboratories, and technical supervision departments.
Technical Specifications
| Parameter |
Specification |
| Model |
High Temperature Universal Tensile Strength Testing Machine |
| Max Load |
5KN, 1ton, 2 ton |
| Accuracy Grade |
1% / 0.5% |
| Effective Measuring Range |
0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Testing Speed Range |
0.001~200mm/min; 500mm/min (1000mm/min optional) |
| Power Supply |
220V, 50HZ |
| Machine Dimensions |
80×55×220cm (L×W×H) |
| Weight |
250kg |
Related Products
We manufacture a complete range of universal tensile testing equipment to meet various industrial requirements.
Frequently Asked Questions
What's the warranty statement?
Zhongli warrants all products against defects in material and workmanship for 12 months (or 36 months for certain cases) from date of purchase. Warranty covers only the product itself and excludes labor costs, installation costs, or other losses. Warranty applies only when products are installed and used properly according to manufacturer guidelines.
What's the return policy?
Customers must report any damage within 7 days of receipt by sending digital photographs of damaged items. Original packaging and shipping containers must be retained until claim settlement. Damage claims beyond 7 days will not be considered valid.
How about in case of breakage?
Returns are accepted within 30 days of shipment with prior authorization. All returns must include original sales invoice number clearly marked on package exterior and be in original packaging. Modified or installed items cannot be returned.
How about the after-sales service?
We provide 24/7 support with 12-month warranty coverage. Our engineers can offer on-site service when needed, along with life-long maintenance services for all our products.
