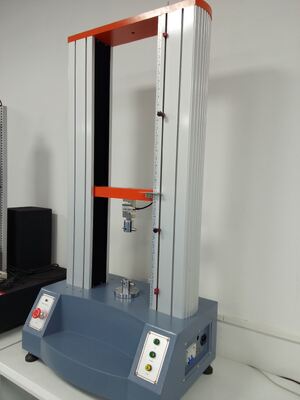

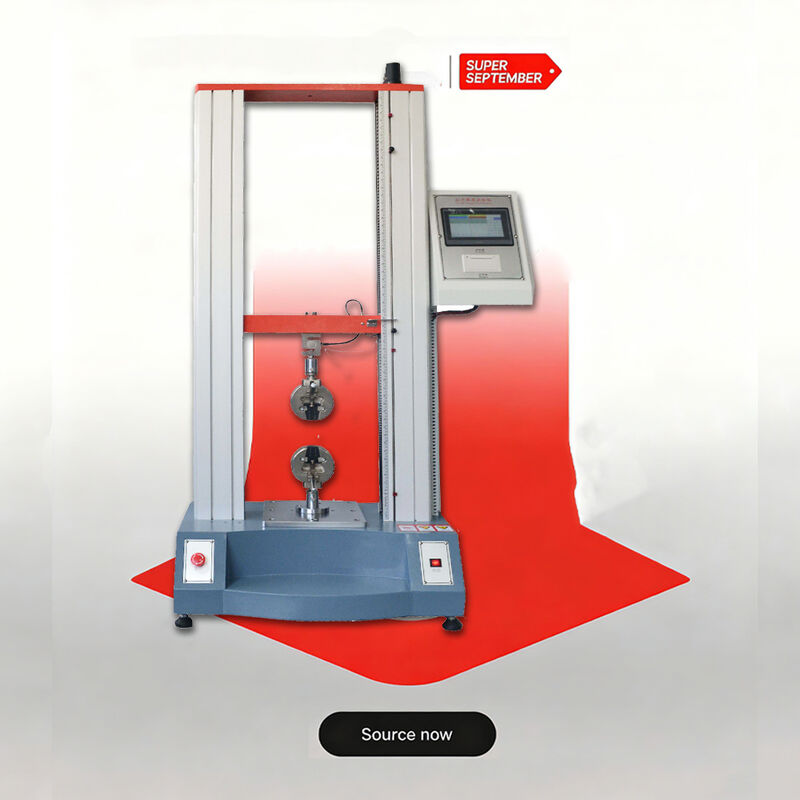

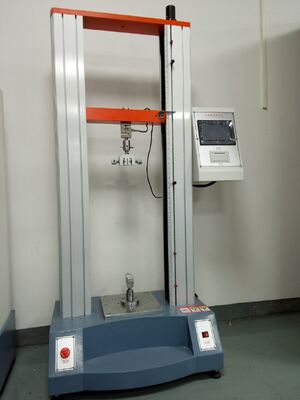

Desktop Microcomputer Tensile Tester | ASTM D3574 & ISO 8067 Universal Testing Machine
Product Overview
This universal testing machine is designed for comprehensive material testing including tension, compression, bending, shear, peel (90° and 180°), tear, and extension testing (with extensometer). Suitable for various materials including rubber, plastics, synthetic leather, tape, adhesive, plastic film, composites, electronics, and metals.
Key Features
- Tests multiple material properties including tensile strength, compression, bending, and shear
- Compliant with GB/T16491-1996 electronic universal testing machine standards
- Advanced measurement and control system with embedded microcontroller
- Automatic calculation of stress, elongation rate, tensile strength, and elastic modulus
- Computerized data display with dynamic curve monitoring during tests
- Post-test data analysis and report generation capabilities
Applications
Widely used in wire and cable, hardware, electronics, packaging, printing, medical equipment, automotive parts, textiles, leather, footwear, rubber and plastic products industries. Essential equipment for research laboratories, quality inspection, and technical supervision departments.
Technical Specifications
| Parameter |
Specification |
| Model |
ZL-8002 |
| Max Load |
500N, 1KN, 2KN, 5KN |
| Measuring Accuracy |
1 grade / 0.5 grade |
| Tester Resolution |
0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Effective Tensile Stroke |
800mm; 1000mm; 1200mm (customizable) |
| Testing Speed Range |
0.001~500mm/min |
| Power System |
Panasonic AC Servo Motor + Driver |
| Power Supply |
220V, 50HZ |
| Machine Dimensions |
65×36×210cm (L×W×H) |
| Weight |
Approx. 160 KG |
Advanced Features
- Photoelectric encoder for precise displacement measurement
- Multi-function software combining measurement, control, calculation and storage
- Automatic recording of maximum points, breaking points, and specified values
- Graphical data processing module for detailed analysis
- Electronic limit protection with 10% overload protection
- Manual or automatic operation with fast/slow speed control
Custom Fixture Options
About Zhongli Instrument Technology
Founded in 2007 and headquartered in Dongguan, Guangdong, China, we specialize in manufacturing laboratory testing equipment. Our products are exported to over 110 countries worldwide, with particular success in European and American markets.
Frequently Asked Questions
How to choose the right testing equipment?
Our professional team will provide recommendations based on your specific testing requirements and specifications.
What is the delivery time?
Standard delivery time is 15-20 working days after deposit. Rush orders can be accommodated.
Do you offer customization?
Yes, we provide both standard and customized machines tailored to your specific needs.
What is your warranty policy?
We offer a 2-year warranty including technical support and parts replacement.
